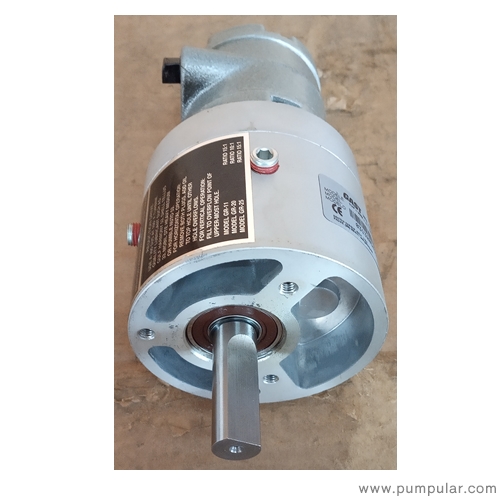

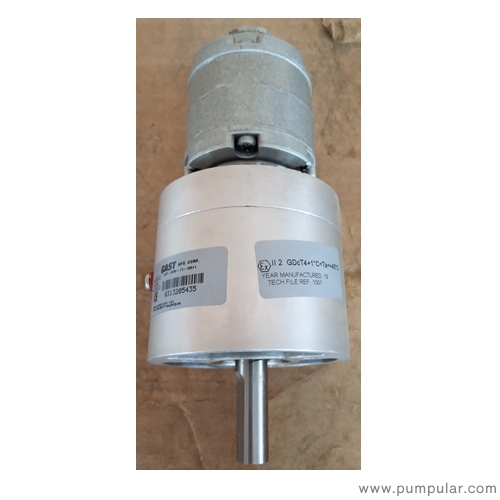

GAST Air Motor 1UP-NRV-11-GR11
Air Motor 1UP-NRV-11-GR11 of Gast Manufacturing
714.00$
Product Specifications
| Max Air Consumption: | 21 cfm ( 35.68 m3h ) |
| Max Power: | 0.31 hp ( 0.23 kW ) |
| Max Pressure: | 5.6 bar ( 81.22 psi ) |
| Max Sound Level: | 78 dB(A) |
| Max Speed: | 400 rpm |
| Max Torque: | 95 in-lb ( 10.74 N m ) |
| Mount: | FACE |
| Output Shaft Type: | Flat |
| Port Size and Type: | 1/8″ NPT |
| Regulatory Approval: | CE, ATEX |
| Rotation: | Reversible |
| Shaft Size | 0.5 in ( 12.7 mm ) |
| Stainless Steel: | NO |
| Starting Torque @ 80psi: | 75 in-lb ( 8.48 N m ) |
| Torque Max Speed: | 49 in-lb ( 5.54 N m ) |
| Vanes: | 8 |
| Weight: | 3.1 lbs ( 1.41 kg ) |
