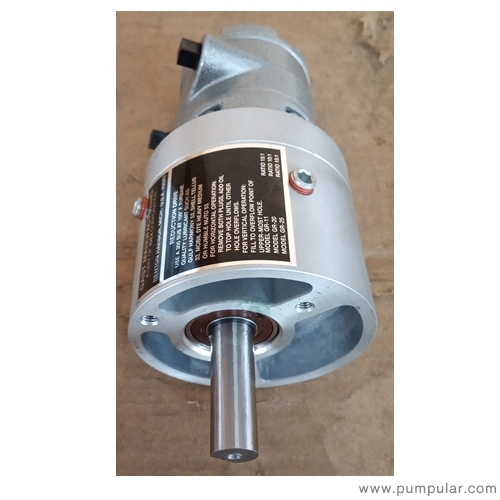

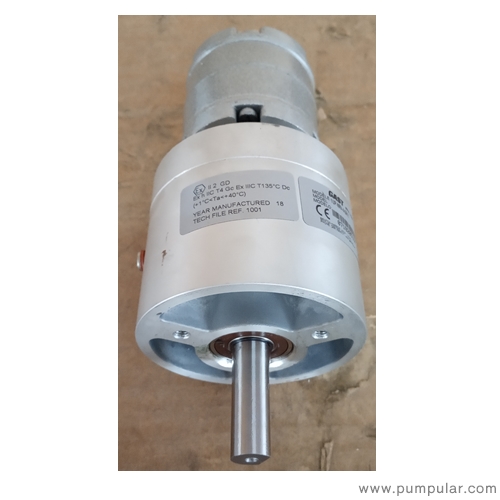

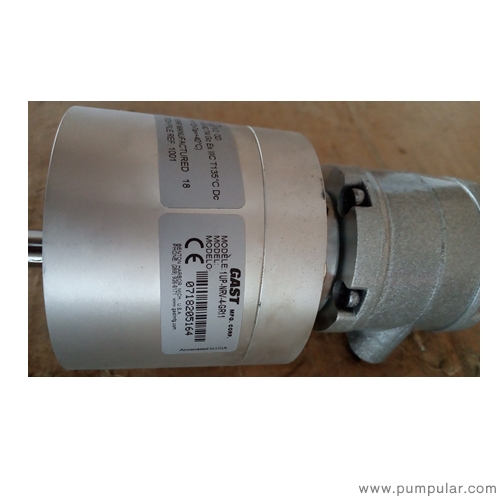

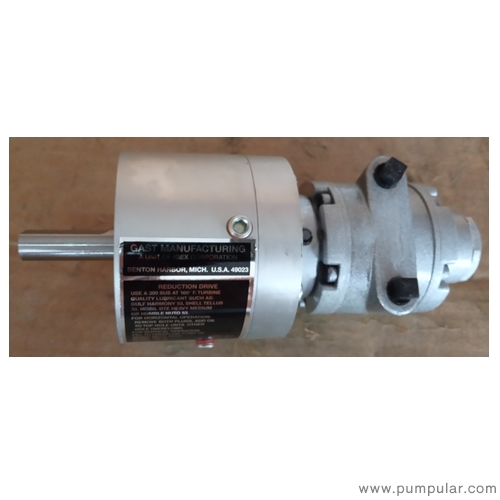

Air Power Gear Motor 1UP-NRV-4-GR11
Air Power Gear Motor 1UP-NRV-4-GR11
466.00$
Product Specifications
| Max Air Consumption | 21 cfm ( 35.68 m3h ) |
| Max Power | 0.31 hp ( 0.23 kW ) |
| Max Pressure | 5.6 bar ( 81.22 psi ) |
| Max Sound Level | 78 dB(A) |
| Max Speed | Â 400 rpm |
| Max Torque | 95 in-lb ( 10.74 N m ) |
| Mount | FACE |
| Output Shaft Type | Flat |
| Port Size and Type | 1/8″ NPT |
| Regulatory Approval | CE, ATEX |
| Rotation | Reversible |
| Shaft Size | 0.5 in ( 12.7 mm ) |
| Stainless Steel | NO |
| Starting Torque @ 80psi | Â 75 in-lb ( 8.48 N m ) |
| Torque Max Speed | 49 in-lb ( 5.54 N m ) |
| Vanes | 4 |
| Weight | 3.1 lbs ( 1.41 kg ) |
