Drum pump KOSHIN FD-24 DC-24V
Drum pump KOSHIN FD-24 DC-24V.Powerful “Fill Pump” Only 2 Minutes to empty 200 L Drum (FR-200)
Powerful “Fill Pump” Only 2 Minutes to empty 200 L Drum (FR-200)
Feature
- Two stage system of axial flow vane and spiral vane result in an excellent flow rate.E2
Applications
– Low viscosity oil
– Heavy fuel oil A
– Kerosene
– Diesel
Product Specifications
| Model | BL-2512S | |
| PUMP | Connection Dia | 20 mm(¾”) |
| Connection Thread | Inner Pipe Thread | |
| Total Head | 7 m (23ft) | |
| Delivery Volume | 50 L/min(13 USG/min) (Kerosence, Light Oil) |
|
MOTOR |
Type | Enclosed Fan-cooled Commutator |
| Voltage | DC 24 V | |
| Rated Current | 7 A | |
| Output | 90 W | |
| Revolution | 7300 rpm | |
| Rating | Continuous | |
| Power Cord | Oil-Proof Cord 5 m (16.4 ft) | |

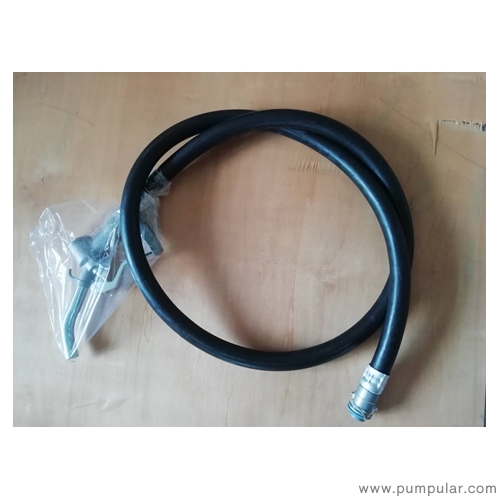

| Delivery house | 1 oil-Proof House (20 mm(¾) * 2 m) | |
| Gross Weight | 20 kg (44.1 Ibs) | |
| Dimensions L×W×H (mm) | 1218 * 281 * 157 | |
| Packing Unit | 2 | |
