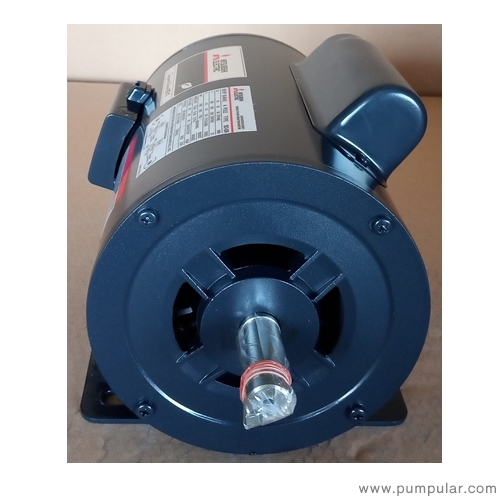

Mitsubishi SC-QR 1/2HP 4P 220V Single Phase Induction Motor
Mitsubishi SC-QR 1/2HP 4P 220V Single Phase Induction Motor
Conformed standard motor efficiency class IE1 with IEC 60034-30-1
90.00$
SUPER LINE Q SERIES SINGLE PHASE INDUCTION MOTOR
Mitsubishi SC-QR 1/2HP 4P 220V Single Phase Induction Motor
• Model Q-series instead K-series, but installation and outline dimension same as K-series. (Installation base on IEC standard)
• Conformed standard motor efficiency class IE1 with IEC 60034-30-1
• Developed & Made in Thailand, License by Mitsubishi Electric, Japan
Standard Specifications
Product Specifications
| Item | SCL-QR | ||
| Output (HP) | 1/2 | ||
| Frame No. | 80M | ||
| No. of poles | 4 | ||
| Thermal class | E | ||
| Power supply | 1 Phase 220/230V 50Hz | 1 Phase 220V 60Hz50Hz | |
| Full load current (A) | 4.3 | 4.3 | 3.6 |
| Full load speed (min-1) | 1430 | 1430 | 1720 |
| Starting current (A) | 18.5 | 19 | 17.5 |
| Starting torque (%) | 250 | 280 | 259 |
| Break down torque (%) | 248 | 280 | 222 |
| Efficiency (%) | 70 | 70.4 | 72.7 |
| Net weight (kg) | 11.4 | ||
