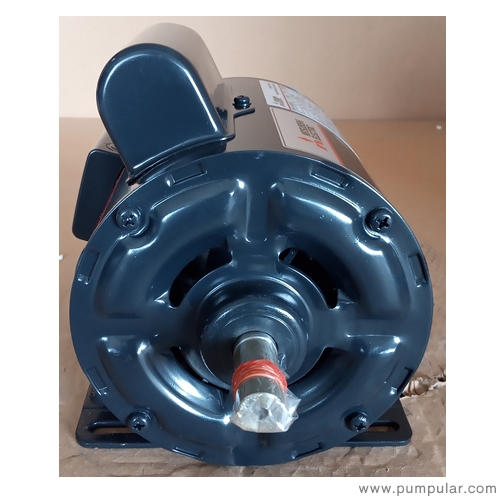

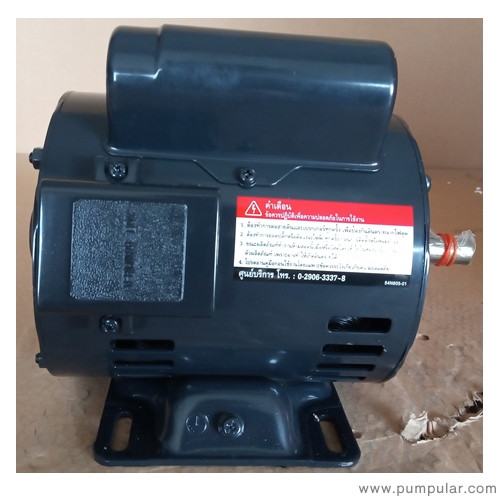

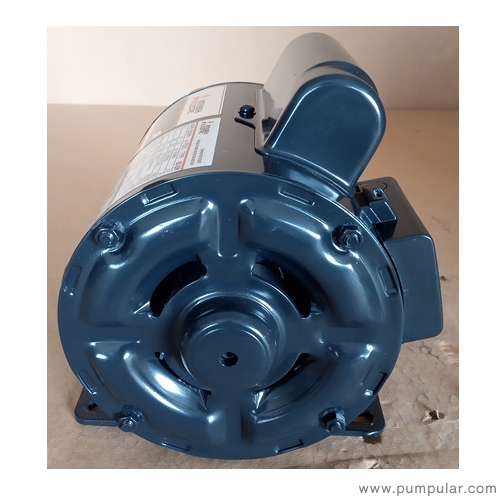

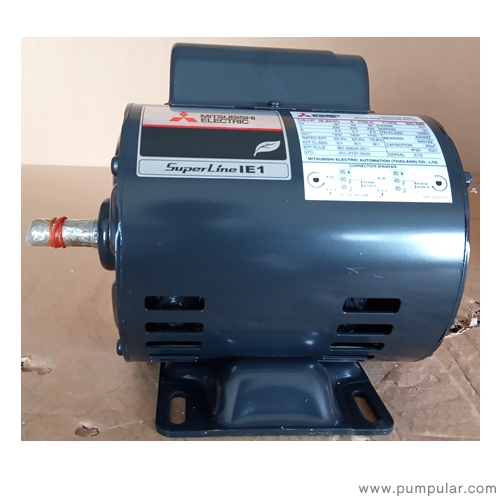

Mitsubishi SC-QR 1/4HP 4P 220V Single Phase Induction Motor
Mitsubishi SC-QR 1/4HP 4P 220V Single Phase Induction Motor
Conformed standard motor efficiency class IE1 with IEC 60034-30-1
65.00$
SUPER LINE Q SERIES SINGLE PHASE INDUCTION MOTOR
Mitsubishi SC-QR 1/4HP 4P 220V Single Phase Induction Motor
• Model Q-series instead K-series, but installation and outline dimension same as K-series. (Installation base on IEC standard)
• Conformed standard motor efficiency class IE1 with IEC 60034-30-1
• Developed & Made in Thailand, License by Mitsubishi Electric, Japan
Standard Specifications
Product Specifications
| Item | SCL-QR | ||
| Output (HP) | 1/4 | ||
| Frame No. | A71 | ||
| No. of poles | 4 | ||
| Thermal class | E | ||
| Power supply | 1 Phase 220/230V 50Hz | 1 Phase 220V 60Hz50Hz | |
| Full load current (A) | 2.6 | 2.7 | 2.3 |
| Full load speed (min-1) | 1450 | 1450 | 1740 |
| Starting current (A) | 11 | 11.5 | 11 |
| Starting torque (%) | 351 | 386 | 338 |
| Break down torque (%) | 273 | 326 | 263 |
| Efficiency (%) | 65.5 | 62.5 | 70.8 |
| Net weight (kg) | 6.8 | ||
