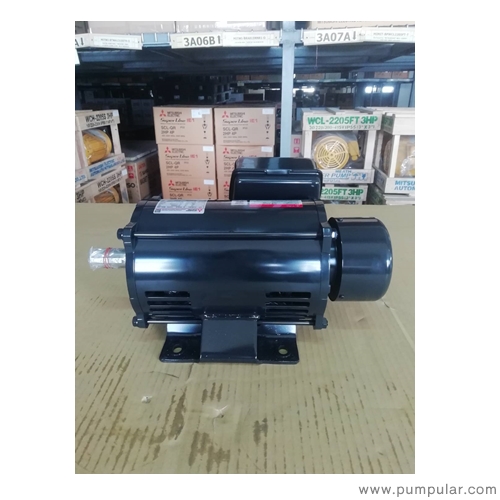

Mitsubishi SCL-QR 2HP 4P 220V Single Phase Induction Motor
Mitsubishi SCL-QR 2HP 4P 220V Single Phase Induction Motor
Conformed standard motor efficiency class IE1 with IEC 60034-30-1
225.00$
SUPER LINE Q SERIES SINGLE PHASE INDUCTION MOTOR
Mitsubishi SCL-QR 2HP 4P 220V Single Phase Induction Motor
• Model Q-series instead K-series, but installation and outline dimension same as K-series. (Installation base on IEC standard)
• Conformed standard motor efficiency class IE1 with IEC 60034-30-1
• Developed & Made in Thailand, License by Mitsubishi Electric, Japan
Standard Specifications
Product Specifications
| Item | SCL-QR | ||
| Output (HP) | 1 | ||
| Frame No. | 90S | ||
| No. of poles | 4 | ||
| Thermal class | B | ||
| Power supply | 1 Phase 220/230V 50Hz | 1 Phase 220V 60Hz50Hz | |
| Full load current (A) | 5.2 | 5.3 | 4.6 |
| Full load speed (min-1) | 1430 | 1440 | 1720 |
| Starting current (A) | 30.5 | 31.5 | 30 |
| Starting torque (%) | 250 | 275 | 262 |
| Break down torque (%) | 255 | 294 | 249 |
| Efficiency (%) | 77.5 | 75.6 | 81.1 |
| Net weight (kg) | 15.2 | ||
