Mitsubishi SCL-QR 3HP 4P 220V Single Phase Induction Motor
Mitsubishi SCL-QR 3HP 4P 220V Single Phase Induction Motor
Conformed standard motor efficiency class IE1 with IEC 60034-30-1
285.00$
SUPER LINE Q SERIES SINGLE PHASE INDUCTION MOTOR

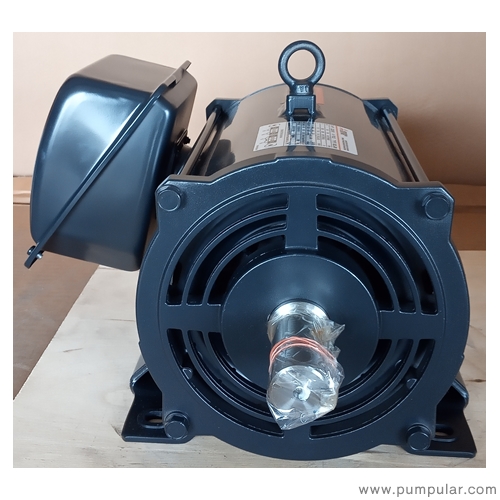

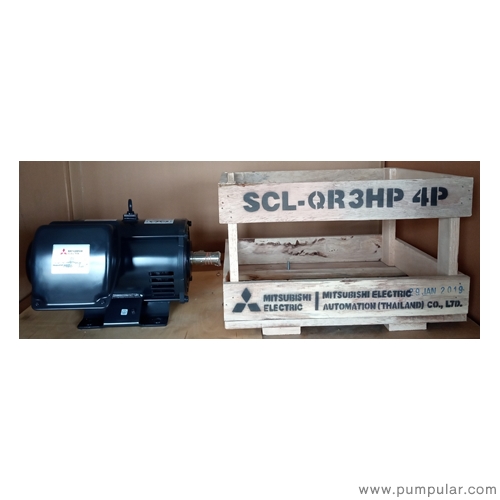

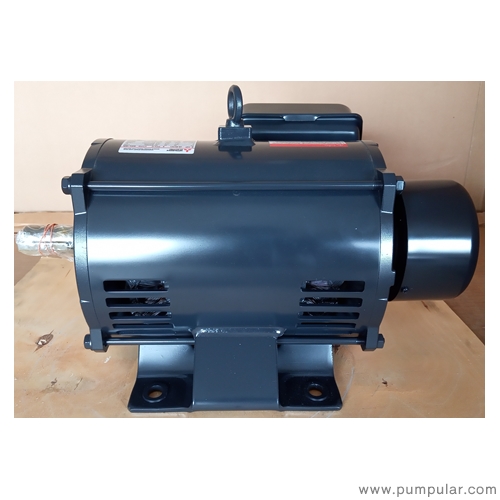

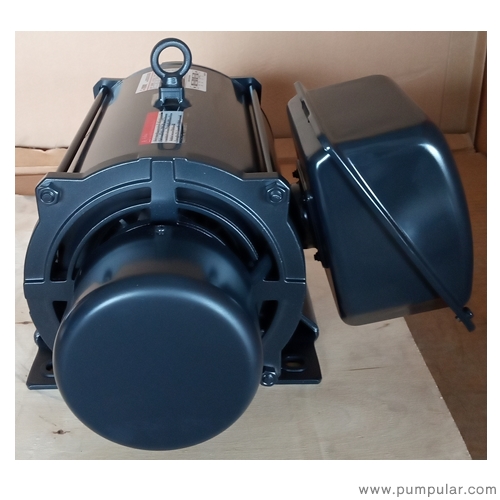

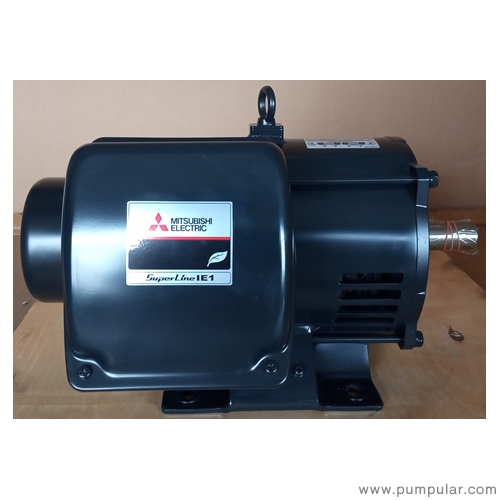

Mitsubishi SCL-QR 3HP 4P 220V Single Phase Induction Motor
• Model Q-series instead K-series, but installation and outline dimension same as K-series. (Installation base on IEC standard)
• Conformed standard motor efficiency class IE1 with IEC 60034-30-1
• Developed & Made in Thailand, License by Mitsubishi Electric, Japan

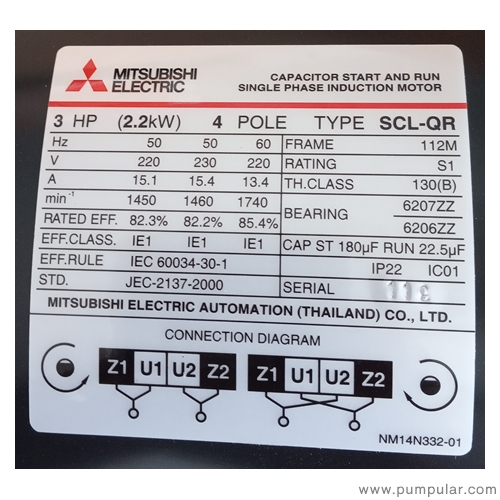

Standard Specifications
Product Specifications
| Item | SCL-QR | ||
| Output (HP) | 3 | ||
| Frame No. | 112M | ||
| No. of poles | 4 | ||
| Thermal class | B | ||
| Power supply | 1 Phase 220/230V 50Hz | 1 Phase 220V 60Hz50Hz | |
| Full load current (A) | 15.1 | 15.4 | 13.4 |
| Full load speed (min-1) | 1450 | 1460 | 1740 |
| Starting current (A) | 89 | 92 | 86 |
| Starting torque (%) | 222 | 248 | 252 |
| Break down torque (%) | 285 | 274 | 257 |
| Efficiency (%) | 82.3 | 82.2 | 85.4 |
| Net weight (kg) | 32.8 | ||
