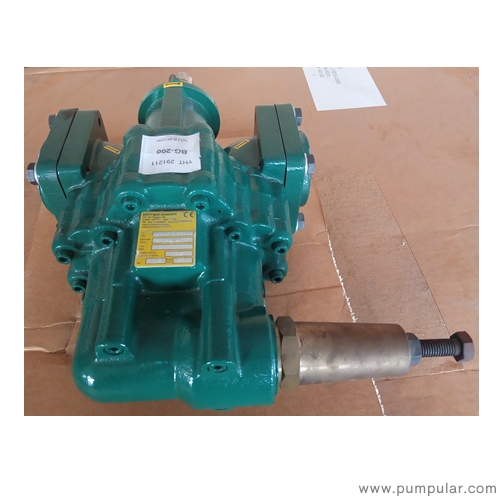

Cucchi BG200 gear pump green
Cucchi BG200 gear pump green
B – body and cover in cast iron – gears and shafts in carbon steel – bypass valve in brass – self lubrificating sinterized bushes.
0.00$
Feature
– B – body and cover in cast iron – gears and shafts in carbon steel – bypass valve in brass – self lubrificating sinterized bushes.
– SEALS: Mechanical seal (C) – Double mechanical seal (CC) – Packing rings (B). It is possible to add preheating chamber (CP).
– Pressure: up to 10 bars.
– Maximum viscosity: 100.000 cps.
– Maxim um temperature (on request): 300°C.
Applications
This range of gear pumps is available to transfer oil – naphta – fuel oil – preheated grease – adhesive – glue – varnish – resin – molasses – syrup – etc.
Capacity’from 5 to 600 I/min.
Product Specification
| PERFO RMAN CE DATA AT 14 50 r p.m. – OIL VISCOSITY 6”E | ||||||||||
| Type | Flanges | Capacity/Min – Pressure MT. | HP Absorbed – Pressure MT. | N.P.S.H. | ||||||
| 25 | 50 | 75 | 100 | 25 | 50 | 75 | 100 | 4 | ||
| BG200 | 2^/c” | 215 | 212 | 208 | 205 | 2,20 | 3,70 | 5,50 | 7,50 | 5 |
