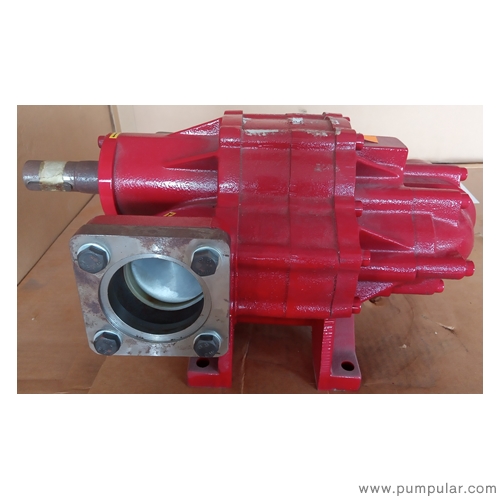

Cucchi BG500 gear pump
Cucchi BG500 gear pump
B – body and cover in cast iron – gears and shafts in carbon steel – bypass valve in brass – self lubrificating sinterized bushes.
3,730.00$
Feature
– B – body and cover in cast iron – gears and shafts in carbon steel – bypass valve in brass – self lubrificating sinterized bushes.
– SEALS: Mechanical seal (C) – Double mechanical seal (CC) – Packing rings (B). It is possible to add preheating chamber (CP).
– Pressure: up to 10 bars.
– Maximum viscosity: 100.000 cps.
– Maxim um temperature (on request): 300°C.
Applications
This range of gear pumps is available to transfer oil – naphta – fuel oil – preheated grease – adhesive – glue – varnish – resin – molasses – syrup – etc.
Capacity’from 5 to 600 I/min.
Product Specification
| PERFO RMAN CE DATA AT 14 50 r p.m. – OIL VISCOSITY 6”E | ||||||||||
| Type | Flanges | Capacity/Min – Pressure MT. | HP Absorbed – Pressure MT. | N.P.S.H. | ||||||
| 25 | 50 | 75 | 100 | 25 | 50 | 75 | 100 | 4 | ||
| BG500 | 3″ | 525 | 515 | 510 | 505 | 4,50 | 8,50 | 12,6 | 16,0 | 4 |
