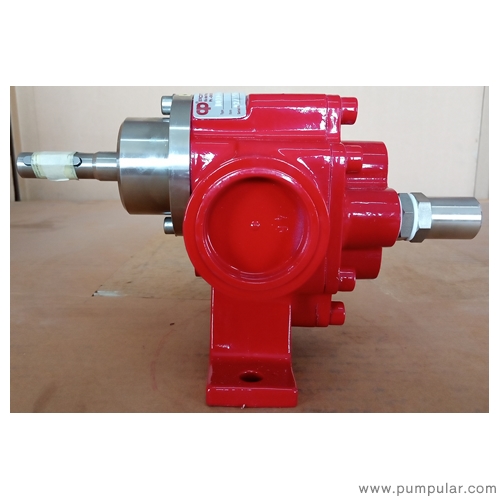

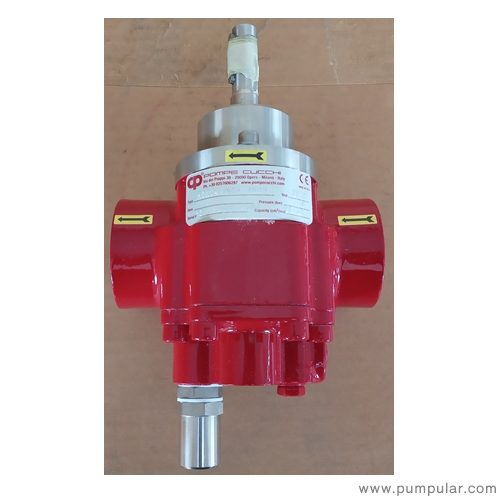

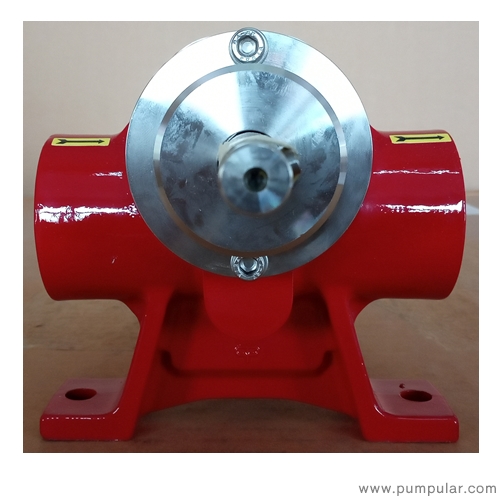

Cucchi MX040 gear pump
Cucchi MX040 gear pump
This range constuction is conformed to the standards CE 89/392, 91/368,93/44/68, 98/37 – UNI EN ISO 14847, 809 – API 676 – on request, NACE MR 0175 and ATEX.
2,760.00$
Feature
– This range constuction is conformed to the standards CE 89/392, 91/368,93/44/68, 98/37 – UNI EN ISO 14847, 809 – API 676 – on request, NACE MR 0175 and ATEX.
– The quality system operated by Pompe Cucchi Srl is according to the standards UNI EN ISO 9001:2000 (Certificate n.SQU132AQ252).
– The MX series is used in various sectors in liquid transfer with viscosity from 1 to 100.000 cps.A7
APPLICATIONS
Chemical plants: transfer and dosage of every type of liquid completely free of solid suspension.
Food plants: transfer of liquid in the first transformation processes – pumping of chocolate (for this purpose a
special series with pre-heating chamber has been designed with an extremely wide surface which favours the thermal exchange between the water at 55°C and the hydraulic chamber) – fats, marmalade etc.
Agricultural plants: pumping of molasses and other liquid products for animal food.
Industrial plants : pumping of glue, resins, bases, acids, isocyanate, polyhydric alcohols etc.
Product Specification
TECHNICAL CHARACTERISTICS PUMPS RANGE MX
| Type | Capacity (L/min.) |
Connections | R.P.M. | kW Absorbed | Weight (Kg.) |
|
| 5 bar | 10 bar | |||||
| MX040 | 40 | G 1 1/2” | 1.450 | 0.70 | 1.10 | 6.5 |
