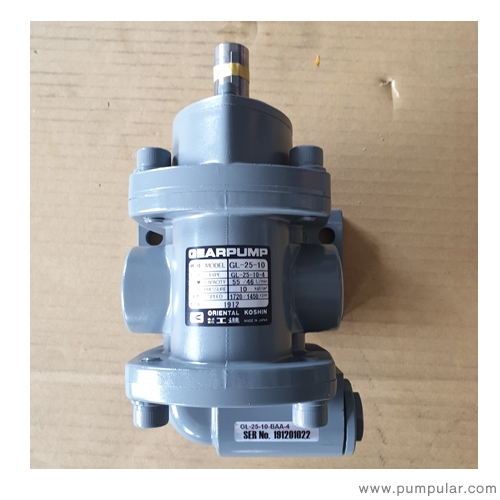

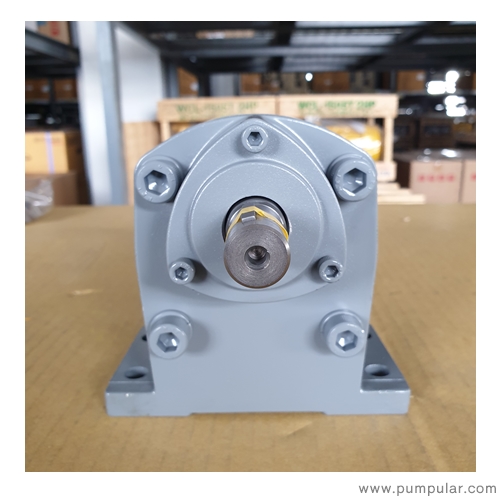

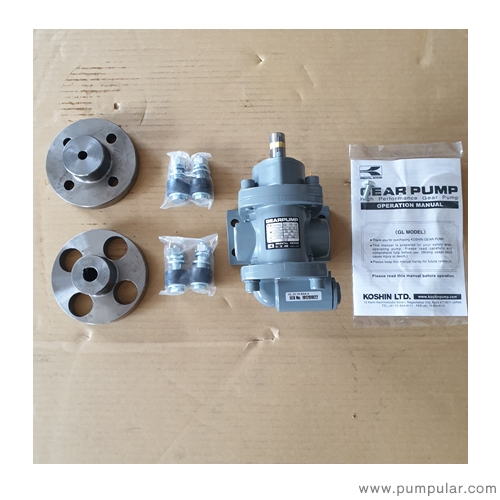

Gear pump KOSHIN GL-25-10 1″
Gear pump KOSHIN GL-25-10 1″. “GEAR PUMP” GL Series for Low Viscosity Oil.
460.00$
“GEAR PUMP” GL Series for Low Viscosity Oil
Feature
• Safety by-pass function protects pump.
Applications
• Kerosene
• Machine oil
• Heavy oil
• Light oil
Product Specifications
| Model | GL-25-10 | ||
| PUMP | Connection Dia | 25 mm (1″) | |
| Power | 2.2 kW | ||
| Poles | 4 P | ||
| Max. Pressure | 1 MPa (10 kgf/cm 2 ) |
||
| Delivery (1720 rpm) Volume |
60 Hz Delivery (1720 rpm) |
55 L/min (14 USG/min) |
|
| 50 Hz (1450 rpm) | 46 L/min (12 USG/min) |
||
| Coupling | ZDC | ||
| Pump Shaft Dia | 18 mm | ||
| Gross Weight | 9 kg (19.8 lbs) | ||
| Dimensions L×W×X (mm) | 307 × 150 × 155 | ||
| Packing Unit | 1 | ||
