Elephant Manual Chain Block C21-5 ton 3m
Elephant Manual Chain Block C21-5 ton 3 m
- Drop forged, properly normalized hooks.
- Tough framing.
- Strong, least corrosive.
305.00$

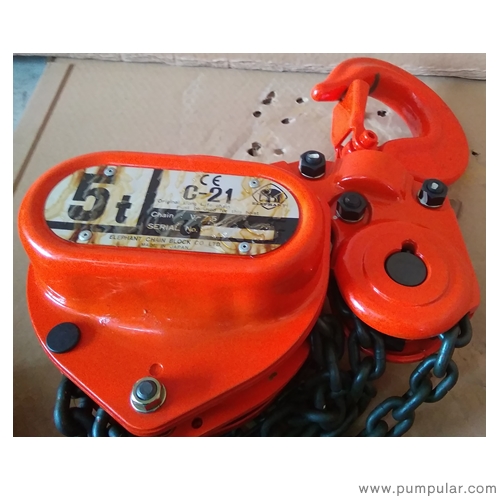

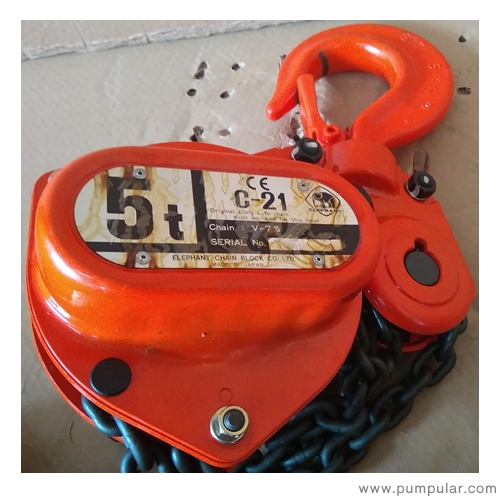

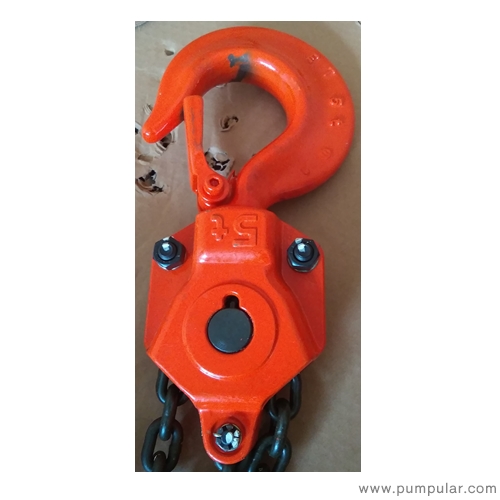

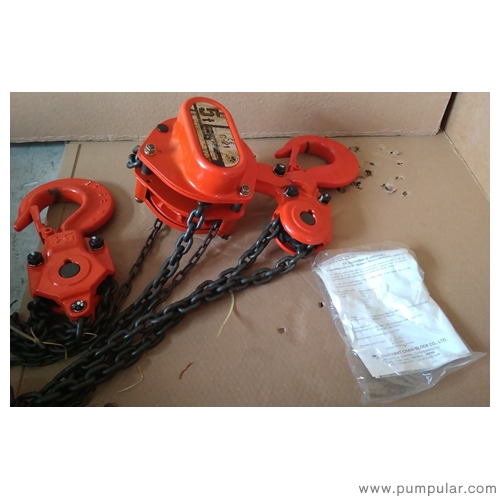

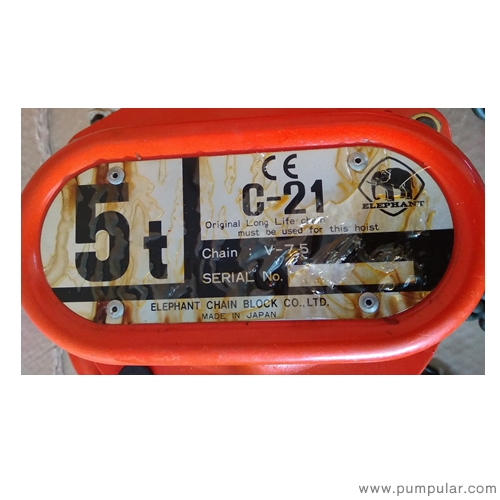

Elephant Manual Chain Block C21-5 ton 3 m
- Drop forged, properly normalized hooks.
- Tough framing.
- Strong, least corrosive.
- Electrostatic powder painting.
- Safe, dry, long-lasting friction disc.
- Free from oil permeation.
- Very light and compact body, (9.2kg 1ton).
- Easy to carry.
- Elephant’s original long-life chain.
- Best wear resistance on record for manual hoist.
Specification
| Model | Capacity (ton) |
Standard lift (m) |
Test load (ton) |
Min.distance between hooks(A) |
Hand effort to lift full working load (Kg) |
Load chain | Hand chain | Net Weight (Kg) | |
| no. of falls | dia. X pitch (mm) | dia. X pitch (mm) | |||||||
| C21-5 | 5 | 3 | 150% safety working load | 555 | 34 | 3 | 7.5×21 | 4.5×23.0 | 33.9 |
