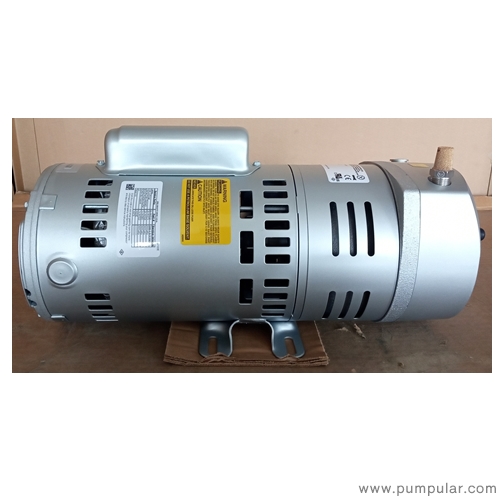

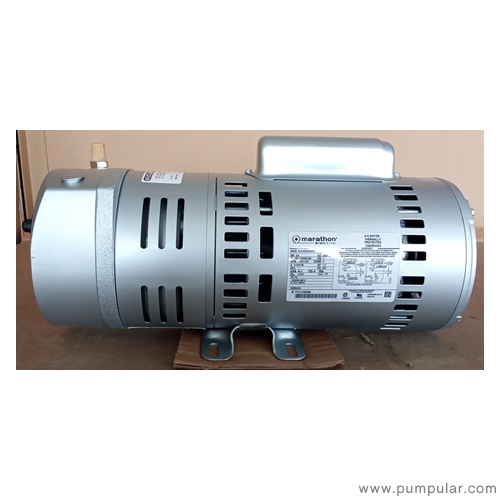

GAST Motor Mounted Rotary Vane Oilless Model 1023-101Q-SG608X
Motor Mounted Rotary Vane Oilless Model 1023-101Q-SG608X of Gast Manufacturing
794.00$
Model 1023 Series
26 inHf max. vacuum
10.0 CFM open flow
10 psi max. pressure
10.0 CFM open flow
Includes
– Thermal protector (on Single Phase units only)
– Internal muffler and filter
– External muffler and filter (1423 Model)
– Silencer
AK840A
AK840 (0523/0823/1023)
AC432 (1423 Models)
– Foot support assembly AC136 (0323/0523)
Product Specifications
| Motor | RPM | HP | kW | Thermal Protector | Net Wt. | ||
|  100-1210/220-240; 100-115/208-230-50/60-1 | 60 cycle | 50 cycle | 3/4 | 0,56 | • | Ibs. | kg |
| 1725 | 1425 | 47 | 21,2 | ||||
